Door opening restriction

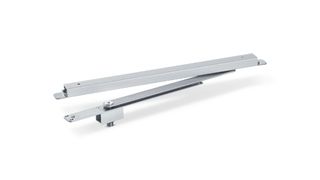

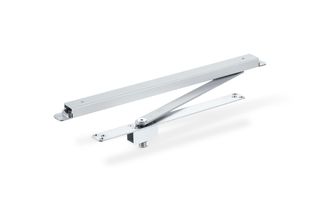

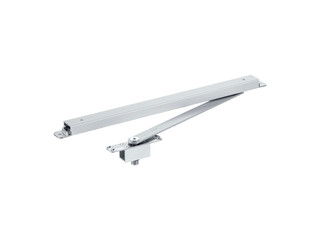

Boxer pivot bearing * Integrated pivot bearing for opening restriction or hold-open function for doors without door closer

GEZE Boxer pivot bearing Integrated door closer with electric free swing function and comfort hold-open function locks the door at the end of the free swing area.
  • Holds doors without door closer open, not self-closing
  • The door opening angle is limited and a door stopper is usually no longer required
  • Door area is more attractive without door stopper, no tripping hazards or dirty corners
  • Can be used for right and left hand doors without conversion
  • Crushing between the door leaf and floor mounted door stopper is avoided
Contact us

Integrated pivot bearing for opening restriction or hold-open function for doors without door closer

Application Areas

  • Right and left single- and double-action doors
  • Opening restriction for single- and double-action doors without door closer
  • Door systems without smoke and fire protection requirements
  • For combination of an automatic swing door drive with a Boxer on 2-leaf door systems

Product specifications

Boxer pivot bearing
Type of installation concealed
Suitability for fire protection doors No
Free swing function No
Adjustable closing speed No
Latching action speed, adjustable No
Delayed closing integrated No
Integrated opening assistance No
Visual closing force display No
Hold-open device Optional
Integrated smoke switch No
Integrated closing sequence control No
