Boxer

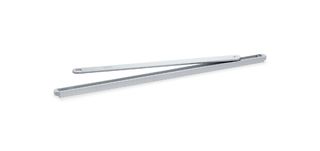

Guide rail Boxer 12 mm * With an overall height of 12 mm and slim lever for standard rebates
- Very small dimensions of only 12 mm height and 20 mm width
- With screwed slide block
- Geometry optimised for narrow door rebate
Application Areas
- Single leaf doors
- Integrated installation
- Installation situations with little installation space
- Right and left single-action doors
- For doors with narrow rebate
Technical data
| Guide rail Boxer 12 mm | |
| Length | 440 mm |
| Width | 20 mm |
| Height | 12 mm |
| Free swing function on active leaf | No |
| opening restrictor upgradable | Yes |
| Hold-open function | Optional |
Downloads

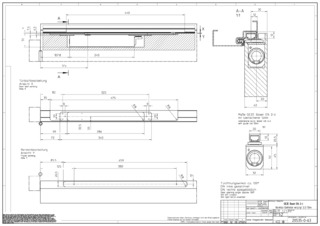

Guide rail Boxer 12 mm
LABELLING OBLIGATION:
© GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
