Slimdrive

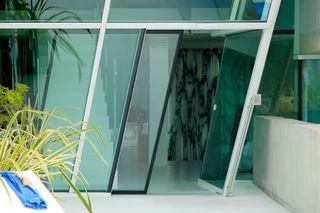

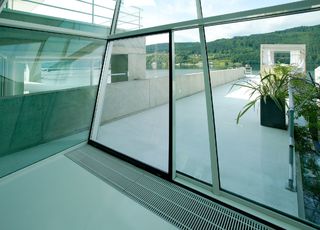

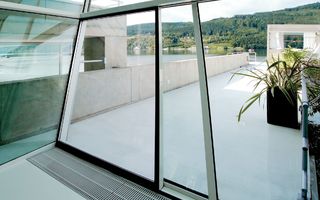

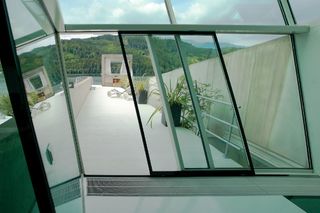

Slimdrive SL inclined * Automatic linear sliding door system for use on inclined glass façades

Slimdrive SL inclined Double leaf sliding door systems. Use in inclined glass façades in post-rail constructions. Interior and exterior doors with high access frequency. Integrated infrared Independent error recognition and recording. Adjustment options for all door motion parameters Freely configurable inputs and outputs for different functions Integrated rechargeable battery for emergency opening in case of safety-related errors such as power failure.
  • Freely-selectable inclination angle up to 9.9° (larger angles available upon request)
  • Continuous floor guide
  • Very quiet running, low-wear direct current drive with a height of only 7 cm
  • Integrated infrared movement detector
  • Can be networked via CAN bus and integrated into building technology management systems
  • Independent error recognition and recording
Show more
  • Adjustment options for all door movement parameters
  • Freely configurable inputs and outputs for different functions
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
  • Various mechanical and electrical locks are optionally available
Contact us

Automatic linear sliding door system for use on inclined glass façades

Application Areas

  • Double leaf sliding door systems
  • Use in inclined glass façades in post-rail constructions
  • Interior and exterior doors with high access frequency
  • Opening widths of up to 2500 mm are possible.
  • Door leaf weights of up to 100 kg per leaf, depending on inclination angle
  • Suitable profile systems are fine-framed profile systems with ISO and mono glass

Product specifications

Slimdrive SL inclined
For 1-leaf door systems No
For 2-leaf door systems No
For 4-leaf door systems No
ISO glass fine-framed No
MONO glass fine-framed No
ESG clamping profile No
All-glass system (GGS) No
Integrated all-glass system (IGG) No
Framed leaf (on site) No
Wooden leaf (on site) No
Fire protection leaf T30 (Hörmann) No
