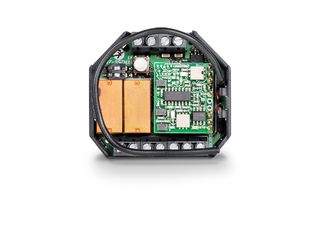

WRM-24 * Receiving module for activating automatic doors and window drives with 24 V DC
- Encrypted communication via rolling code with up to 74 trillion code combinations
- Simple teach-in via learn button with acoustic feedback
- Up to 85 radio transmitters can be taught
- Integrated DIP switch to select different modes of operation
- Pulse mode, pulse and continuous mode, deadman mode, or self-locking mode
- Smallest housing dimensions for integrated installation within a flush-mounted socket
Receiving module for activating automatic doors and window drives with 24 V DC
Application Areas
- Activation of GEZE automatic doors and window drives via the GEZE wireless program
- Flush-mounted installation
Technical data
WRM-24 | |
Operating current | 12.5 mA |
Output | 2 potential-free relay contacts |
IP rating | IP20 |
Type of installation | Flush-mounted installation |
Cable connection type | Screw terminal |
Transmission frequency | 433.93 Mhz |
Service temperature | 0 - 50 °C |
Downloads
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
