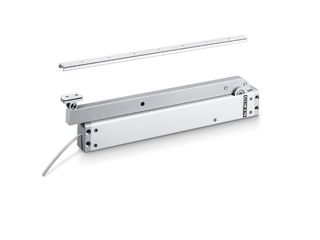

RWA K 600 G * Retractable arm drive for installation on doors and windows with fixed connection via guide rail
- 90° window opening in less than 60 seconds
- Powerful drive with high torque
- Connector cable easy to replace by means of plug
- Integrated status contact for feedback signals
- Integrated synchronous module that can operate a max. of two drives without external control unit
- Tested as a natural smoke and heat exhaust ventilation device (SHEV) in accordance with EN 12101-2
Application Areas
- Smoke and heat extraction and natural ventilation (24 V)
- Inward- and outward-opening windows with bottom-hung, top-hung and side-hung leaves
- Installation on wooden, PVC or metal windows
- Leaf and frame installation
- Door installation possibl

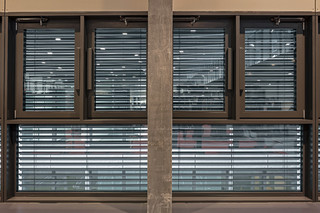

Installation situations in reference objects and videos
Technical data
RWA K 600 G | |
Dimensions | 421 x 40 x 86 mm |
Housing material | Aluminum |
Compressive force | 600 N |
Tensile force | 600 N |
Voltage at operation | 24 V ± 25 % |
Operating voltage | 24 V DC |
Current consumption | 1.4 A |
Residual ripple | 20 % |
Duty rating | 30 % |
Connector cable length | 5 m |
Special length of connector cable | 10 m |
Min. core cross section | 0.5 mm² |
Number of cores | 5 cores |
Service temperature | -5 - 75 °C |
IP rating | IP32 |
protection rating | III |
Synchronising function | Yes |
Adjustable opening speed (ventilation) | Yes |
Additional locking available | Yes |
Type of additional locking mechanism | Locking drive |
Type of stroke shortening | Synchronising unit |
End position cut-off extended | Internal path sensor |
End position cut-off retracted | Internal path sensor |
Overload cut-off | Yes |
SHEV tested | Yes |
Number synchronisation drive units | 2 |
Bottom-hung window INWARD-opening frame installation | Yes |
Bottom-hung window INWARD-opening leaf installation | Yes |
Bottom-hung window OUTWARD-opening frame installation | Yes |
Bottom-hung window OUTWARD-opening leaf installation | Yes |
Side-hung window INWARD-opening frame installation | Yes |
Side-hung window INWARD-opening door leaf installation | Yes |
Side-hung window OUTWARD-opening frame installation | Yes |
Side-hung window OUTWARD-opening door leaf installation | Yes |
Top-hung window INWARD-opening frame installation | Yes |
Top-hung window INWARD-opening leaf installation | Yes |
Top-hung window OUTWARD-opening frame installation | Yes |
Top-hung window OUTWARD-opening leaf installation | Yes |

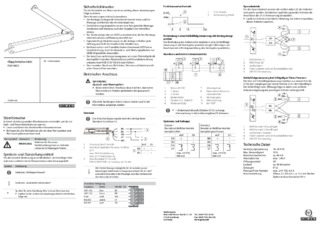

Downloads
