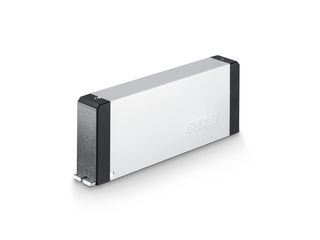

E 212 24 V * Electric linear drive for automation of fanlight openers
- Cost-effective and simple motorised solution for activating several scissors
- Can be integrated perfectly into the façade design thanks to its slim and discreet look
- Opening width variably adjustable over stroke length and can be adjusted as necessary
- Power cut-off and integrated limit switch as well as stroke are adjustable
- Completely pre-mounted assembly groups facilitate installation
Application Areas
- Automation of GEZE OL 90 N, OL 95 N and OL 320 fanlight openers
- Natural ventilation in the façade area
- Inward-opening bottom-hung leaves
- Installation on wooden, PVC or metal windows
- Frame installation

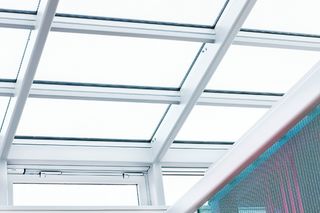

Installation situations in reference objects and videos
Technical data
E 212 24 V | |
Dimensions | 211 x 30 x 80 mm |
Space needed on frame (min.) | Necessary space should be determined individually |
Space requirement on leaf (min.) | Necessary space should be determined individually |
Compressive force | 1500 N |
Tensile force | 1500 N |
Operating voltage | 24 V DC |
Current consumption | 1.2 A |
Power consumption | 29 W |
Duty rating | 25 % |
Min. core cross section | 2.5 mm² |
Number of cores | 3 cores |
Service temperature | -20 - 60 °C |
IP rating | IP42 |
Type of stroke shortening | Mechanical |
End position cut-off extended | Limit switches |
End position cut-off retracted | Limit switches |
Overload cut-off | Yes |
Bottom-hung window INWARD-opening frame installation | Yes |

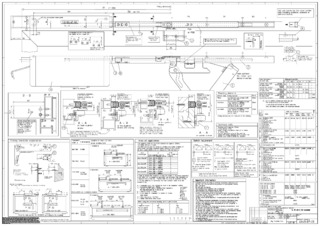

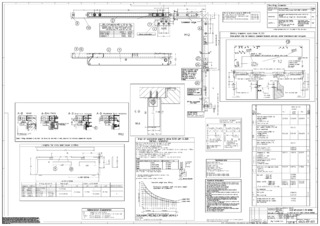

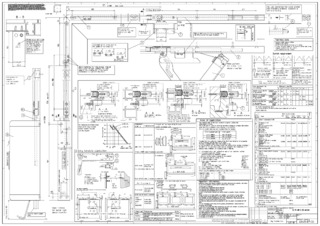

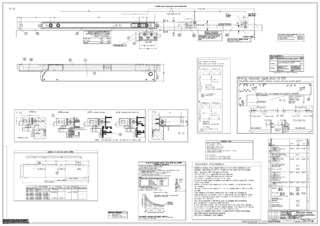

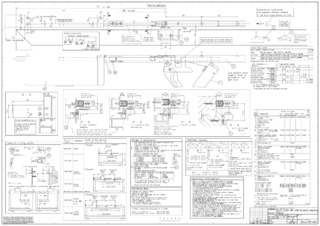

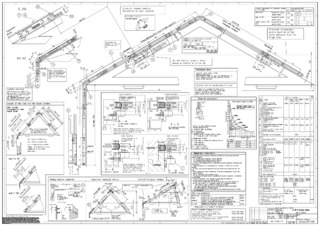

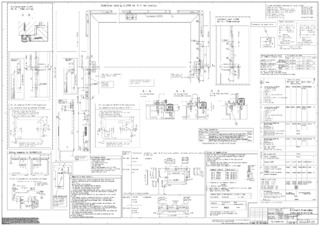

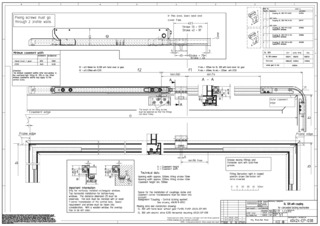

Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © Lothar Wels / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
