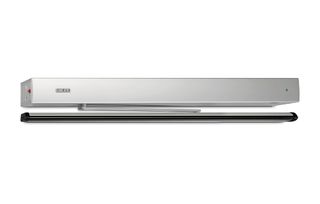

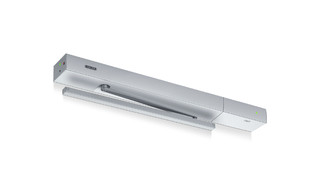

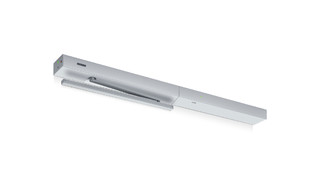

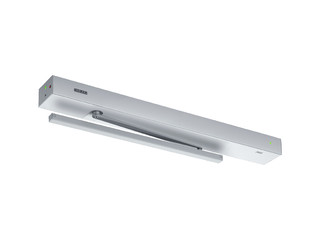

Powerturn F/R * Electromechanical swing door drive for single leaf fire and smoke protection doors with integrated smoke switch

Powerturn F/R
  • Smart swing function for easy manual door opening
  • Closing force of EN4-7 with variable adjustment
  • Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
  • Opening and closing speed can be individually adjusted
  • Mechanical latching action when operated without current, and electrical latching action in regular operation, which accelerates the door shortly before the closed position
  • Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
Show more
  • Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
  • Obstacle detection detects an object through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf

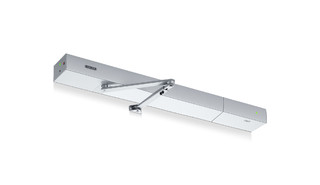

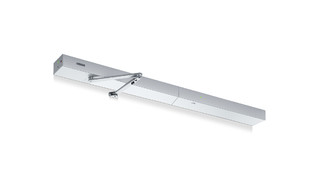

  • Drive can be used with roller guide rail or link arm
  • Servo function for motorized support when manually opening the door
  • Optional radio reception board for wireless activation by radio transmitter
Contact us

Application Areas

  • Fire and smoke protection doors
  • Single-action, single leaf, right and left closing doors
  • Single-action doors up to 1600 mm leaf width or 600 kg weight
  • Minimum leaf width 800 mm
  • Interior and exterior doors with high access frequency
  • Transom installation hinge and opposite hinge side

Technical data

Powerturn F/R
Height 70 mm
Width 920 mm
Depth 130 mm
Leaf weight (max.) 1-leaf 600 kg
Distance centre door hinge-drive axis (min.-max.) 2-leaf, link arm 1657 mm - 3200 mm
Distance centre door hinge-drive axis (min.-max.) 2-leaf, roller guide rail 1657 mm - 2800 mm
Leaf width (min.-max.) 920 mm - 1600 mm
Reveal depth (max.) 300 mm
Drive type Electromechanical
Opening angle (max.) 136 °
Spring pre-load EN4 - EN7
DIN left Yes
DIN right Yes
Transom installation opposite hinge side with link arm Yes
Transom installation opposite hinge side with roller guide rail Yes
Transom installation hinge side with roller guide rail Yes
Mechanical latching action Yes
Electrical latching action Yes
Disconnection from mains Main switch in the drive
Activation delay (max.) 10 s
Operating voltage 230 V
Power rating 200 W
Power supply for external consumers (24 V DC) 1200 mA
Service temperature -15 - 50 °C
IP rating IP30
Mode of operation Automatic, Night, Permanently open, Shop closing, Off
Type of function Fully automatic
Automatic function Yes
Low-energy function Yes
function smart swing Yes
Servo function Yes
Key function Yes
Vestibule function Yes
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation GEZEconnects (PC + Bluetooth), ST 220 service terminal, Programme switch DPS
Parameter setting GEZEconnects (PC + Bluetooth), ST 220 service terminal
Standard conformity DIN 18263-4, DIN 18650, EN 16005
Suitability for fire protection doors Yes
Smoke switch integrated Yes
Use on fire and smoke protection doors (F-variant) Yes
