TS 500 NV with hold-open unit

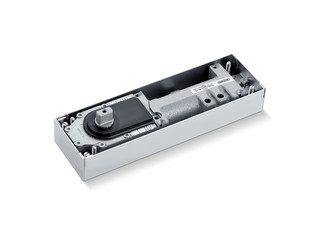

Closer body TS 500 NV * Basic body for floor-mounted door closer EN 1-4
- Closing force EN1-4 with variable adjustment
- Can be used for right and left hand doors without conversion
- Closing speed can be individually adjusted
- Hydraulic latching action which accelerates the door shortly before it is closed
- Integrated back check, slows down doors that are thrown open forcefully
- All functions can be adjusted from above and in the installed state
Application Areas
- Fire and smoke protection doors
- Right and left single- and double-action doors
- Single- and double-action doors up to 1100 mm leaf width and 150 kg weight
- Floor mounting, concealed
Technical data
| Closer body TS 500 NV | |
| Use on single-/double-action door | Single-action door, Double-action door |
| Opening angle (max.) | 170 ° |
| Closing force in accordance with EN 1154 | EN 1 - 4 |
| Leaf width (max.) | 1100 mm |
| Leaf weight (max.) | 150 kg |
| DIN direction | left / right |
| Standard conformity | EN 1154:1996/A1:2002/AC:2006 |
| Length | 278 mm |
| Width | 82 mm |
| Height | 42 mm |
| Length adjustment range for cement box | 10 mm |
| Width adjustment range for cement box | 10 mm |
| Height adjustment range for cement box | 6 mm |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Mechanically fixed |
| Position of closing force adjustment | Top |
| Safety valve againts overload | Yes |
| Thermo-control valves | Yes |
| Closing effect from | 170 ° |
