Closer body TS 500 N EN3 * Basic body for floor-mounted door closer EN3
- Fixed closing force of EN3
- Can be used for right and left hand doors without conversion
- Closing speed can be individually adjusted
- Hydraulic latching action which accelerates the door shortly before it is closed
- Integrated back check, slows down doors that are thrown open forcefully
- All functions can be adjusted from above and in the installed state
Application Areas
- Right and left single- and double-action doors
- Single- and double-action doors up to 950 mm leaf width and 100 kg weight
- Floor mounting, concealed
- Not permitted for use on fire and smoke protection doors.
Technical data
Closer body TS 500 N EN3 | |
Use on single-/double-action door | Single-action door, Double-action door |
Opening angle (max.) | 170 ° |
Closing force in accordance with EN 1154 | EN 3 |
Leaf width (max.) | 950 mm |
Leaf weight (max.) | 100 kg |
DIN direction | left / right |
Standard conformity | EN 1154:1996/A1:2002/AC:2006 |

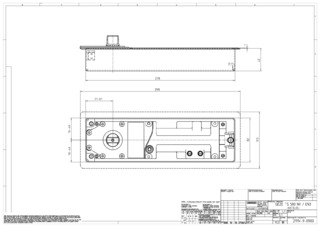

Length | 278 mm |
Width | 82 mm |
Height | 42 mm |
Length adjustment range for cement box | 10 mm |
Width adjustment range for cement box | 10 mm |
Height adjustment range for cement box | 6 mm |
Closing force adjustable | No |
Adjustable closing speed | Yes |
Latching action adjustable | No |
Back check integrated | Mechanically fixed |
Safety valve againts overload | Yes |
Thermo-control valves | Yes |
Closing effect from | 170 ° |
Hold-open range | 85 ° - 120 ° |
