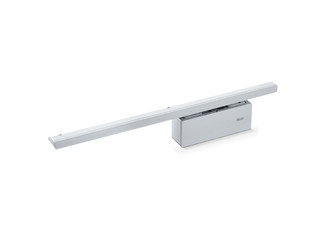

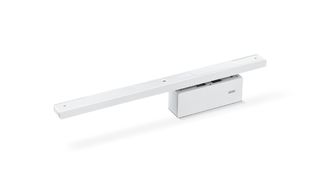

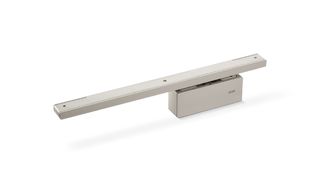

GEZE ActiveStop glass, surface-mounted * Door damper on both sides for interior glass swing doors
- Door opening angle with variable adjustment from 80°-110°
- Can be used for right and left hand doors without conversion
- Soft opening and closing of doors up to max. 45 kg leaf weight
- Gentle stopping, quiet closing and comfortable keeping open of doors
- Practically eliminates slamming doors, trapped fingers, and damage to walls and furniture
- Secure holding of the door when open, meaning no door is stopper necessary
- Opening and closing damping when installed can be set via a valve
- Integrated safety valve offers overload protection
Application Areas
- Right and left glass single action doors with wooden frame indoors
- Room doors with high access convenience
- Single-action doors up to 1100 mm leaf width
- Barrier-free access in accordance with DIN 18040-2
Installation situations in reference objects and videos
Technical data
GEZE ActiveStop glass, surface-mounted | |
Depth | 34 mm |
Height | 68 mm |
Leaf weight (max.) | 45 kg |
Leaf width (max.) | 1100 mm |
Category of door | flush-mounted, rebated |
Identical design for DIN left and DIN right | Yes |
Installation type | surface-mounted |
Adjustable draw-in damper | Yes, via valve |
Draw-in damper in direction of closing movement from | 25 ° |
Free swing area | 25 ° - 60 ° |
Draw-in damper in direction of opening movement from | 60 ° |
Adjustable door opening angle | Yes, stepless |
Hold-open position adjustable | 80 ° - 110 ° |
Safety valve againts overload | Yes |
