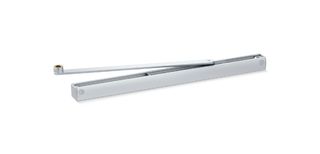

TS 5000 ECline

ECline guide rail TS 5000 * For TS 5000 ECline closer body with opening assistance

ECline guide rail TS 5000
  • Opening assistance for easy opening and comfortable passing of the door
  • Opening assistance can be switched off for doors with wind load or pressure differences
  • Easy to replace with the standard guide rail
  • With screwed sliding block
Contact us

For TS 5000 ECline closer body with opening assistance

Application Areas

  • Barrier-free access with strongly decreasing opening torque
  • Single leaf doors
  • Installation on hinge side
  • Right and left single-action doors

Technical data

ECline guide rail TS 5000
Length 452.5 mm
Width 33 mm
Height 30 mm
Integrated opening assistance Yes
Hold-open function Optional
Opening assistance can be switched off Yes
