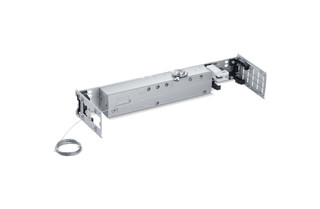

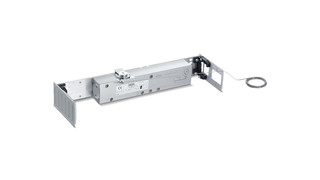

Powerturn IS/TS passive leaf * Passive leaf unit for the Powerturn IS/TS programme
- Symmetrical and asymmetrical division of door possible
- Query whether the door leaf is held open via the potential-free contact of the electric hold-open device
Application Areas
- Single-action doors up to 3200 mm hinge clearance with link arm installation
- Single-action doors up to 3000 mm hinge clearance with roller guide rail installation
Installation situations in reference objects and videos

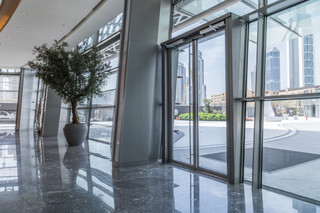

Opera House Dubai
Opera House Dubai, Powerturn © Nicolas Thome / GEZE GmbH
Our most powerful drive: GEZE Powerturn.
The Powerturn automatic swing door drives opens even large, heavy doors with a leaf weight up to 600 kilograms reliably and safely. The GEZE swing door drive is also the perfect solution for fire protection doors.
Installation freedom - with the new GEZE Powerturn.
The clever GEZE assembly system of the Powerturn swing door drive not only reduces storage, but also facilitates the assembly process for installation companies.
Accessibility - with the new GEZE Powerturn.
The Powerturn swing door drive also opens large, heavy doors such as fire protection doors effortlessly in any situation. This is made possible by the unique smart swing feature that also meets demands for inclusion.
Installation video of the GEZE Powerturn IS mechanism swing door drive
The Powerturn swing door drive with integrated closing sequence control is ideal for double leaf fire protection doors and for escape and rescue route doors
GEZE Powerturn, swing door drive installation video
The Powerturn swing door stands out for its flexible installation. This makes it possible to complete different types of installation with only one drive variant.
GEZE Powerturn (swing door drive) sensor roller guide rail installation video
The GEZE sensor roller guide rail for the Powerturn swing door drive can be used for mounting even on very narrow door profiles.
Technical data
| Powerturn IS/TS passive leaf | |
| Height | 70 mm |
| Depth | 130 mm |
| Leaf width (min.-max.) | 1600 mm |
| Spring pre-load | EN7 - EN3 |
| Transom installation opposite hinge side with link arm | Yes |
| Transom installation hinge side with guide rail | Yes |
| Mechanical latching action | Yes |
| Mechanical closing sequence control | Yes |
| Standard conformity | EN 1154:1996/A1:2002/AC:2006, EN 1158 |
| Suitability for fire protection doors | Yes |
Downloads
LABELLING OBLIGATION: © Nicolas Thome / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
