Wireless programme

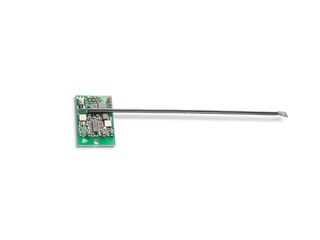

WRB-5 * Radio reception board for ECturn, ECturn Inside and Powerturn swing door drives

WRB-5
  • Encrypted communication via rolling code with up to 74 trillion code combinations
  • Custom and reliable teach-in to exclude unauthorised activation
Contact us

Radio reception board for ECturn, ECturn Inside and Powerturn swing door drives

Application Areas

  • For insertion on the GEZE Powerturn, GEZE ECturn and GEZE ECturn Inside control unit

Technical data

WRB-5
Dimensions 44 x 27 x 10 mm
Operating current 6 mA
Output 2 potential-free relay contacts
Type of installation can be plugged in to DCU control units
Cable connection type System plug-type connector
Transmission frequency 433.93 Mhz
