Perlan AUT-NT for timber leaves * Automation for Perlan on doors with a leaf weight of up to 80 kg
- For automation of Perlan internal sliding doors with a leaf weight of max. 80 kg
- Adjustable comfort and safety functions
- Max. speed can be set up to 0.3 m/s
- Low-energy sliding door drive in accordance with EN 16005
Application Areas
- Sliding door automation for Perlan on light to medium-weight interior doors
- Particularly suitable for private living areas
- Single and multiple-leaf timber sliding doors
- Mounting to the wall and also to the ceiling via additional ceiling brackets
- Not for escape or rescue routes
Installation situations in reference objects and videos

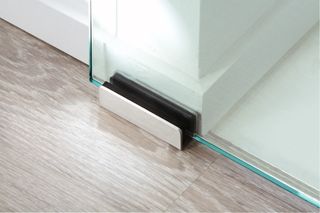

Perlan 140 Glass floor guide
Glass floor guide for sliding fitting systems © Studio BE / GEZE GmbH
Technical data
| Perlan AUT-NT for timber leaves | |
| Leaf material | Wood, Metal |
| Leaf weight (max.) | 80 kg |
| Number of leaves | 1-leaf, 2-leaf |
| Leaf width (min.) | 500 mm |
| Leaf width (max.) | 1640 mm |
| Track geometry | straight |
| Type of installation | Wall, Ceiling |
| DIN direction | left / right |
| Telescope | No |
| Automated | Yes |
| Side panel | No |
Downloads
LABELLING OBLIGATION: © Studio BE / GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
