Hygienic Doors

GEZE MCRdrive * Modular, hermetically sealing sliding door system with air permeability certification

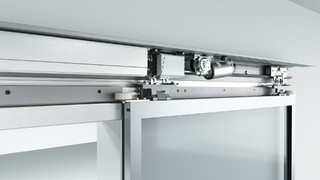

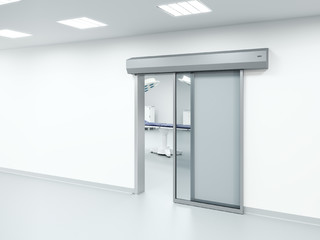

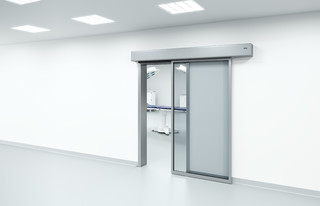

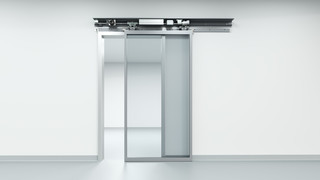

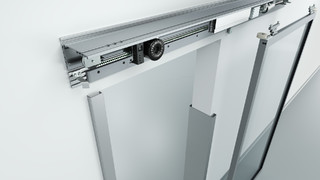

GEZE MCRdrive MCRdrive rendering, drive and leaf view

Consists of the GEZE MCRdrive drive unit and the GEZE MCRdrive leaf system

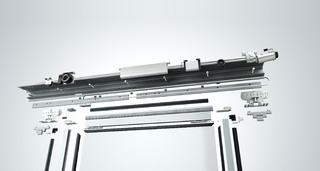

Maximum customer-specific design thanks to modular construction: drive unit and/or leaf system including profile and sealing system
Complies with the highest air permeability class D according to EN 1026 / EN 12207 and the EN 4109 sound insulation requirement of 37dB

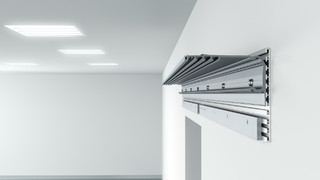

Sophisticated profile system for creating narrow contours and large glass surfaces

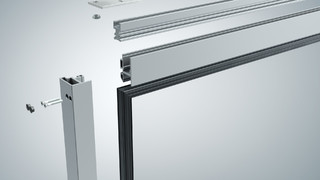

Universal profile system for glass, HPL or stainless steel door leaves

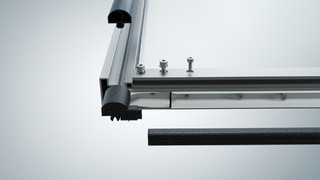

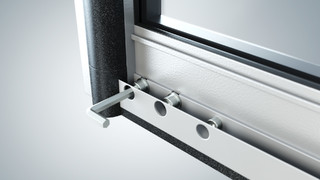

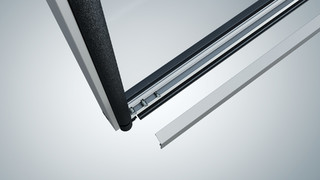

Full circumferential sealing system with sealing corners reduces the air permeability of the closed sliding door system

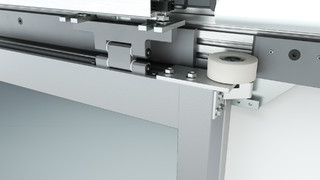

Hermetic seal by lowering and pressing the door leaf against the frame structure
Optimised opening widths for hospital operation (nurse opening, cleaning opening, bed opening)
Low ordering and installation complexity thanks to a simple product concept
Configuration possible via a configuration tool

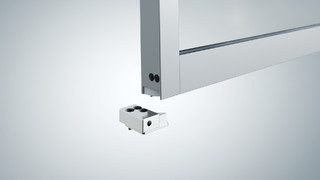

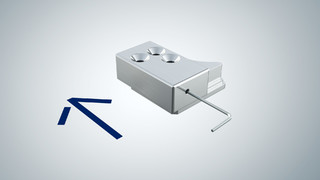

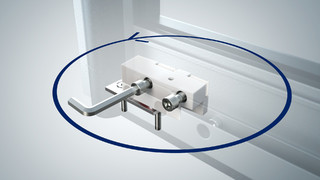

Simple and quick installation thanks to assembly tolerances, and the option of completing fine adjustments of the door leaf on site
Can be networked, and integrated into the building automation via open standard (BACnet)
Available glass and radiation protection with lead insert according to DIN 6834-1 can be implemented

Application Areas

Single leaf sliding door systems
Interior doors for areas with hermetic air permeability requirements
Opening widths from 800 to 2500 mm possible
Operating rooms, quarantine rooms and intensive care areas in health care
Research institution laboratories
Pharmaceutical and food industry

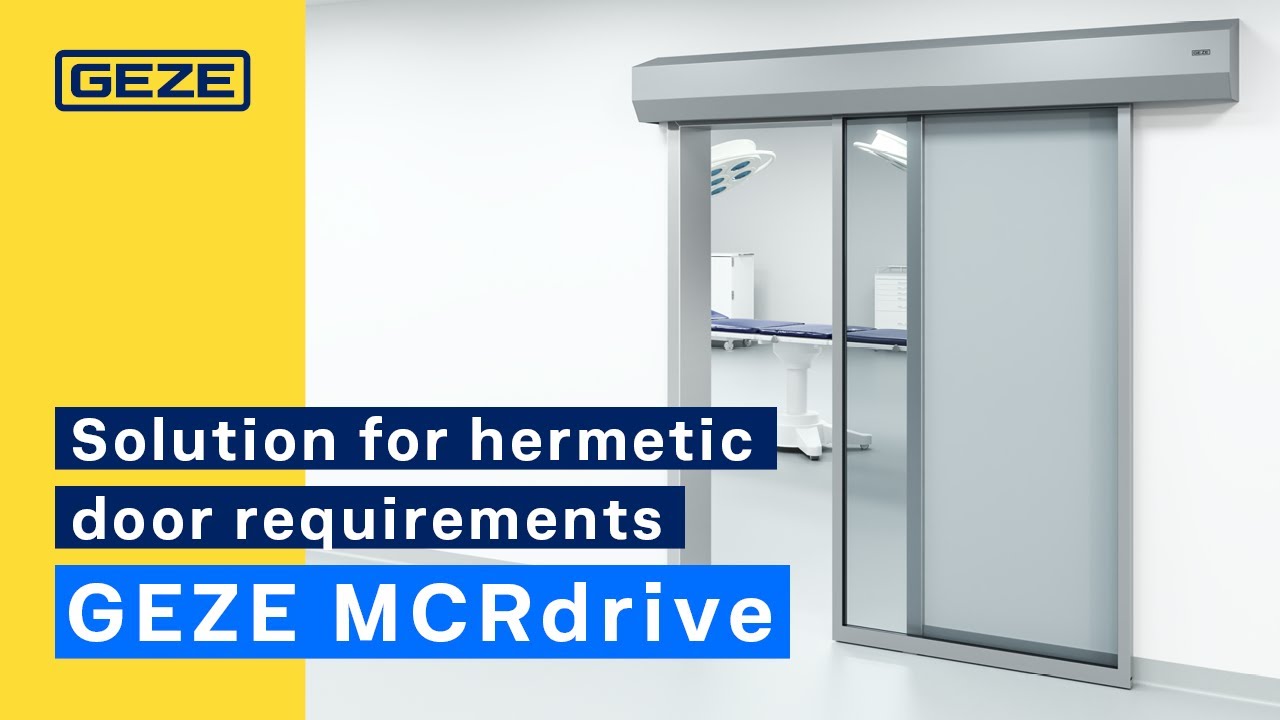

Installation situations in reference objects and videos

GEZE MCRdrive

We offer the GEZE MCRdrive as a modular sliding door system for areas of a building with hermetic air tightness requirements. What sets the GEZE MCRdrive apart is its ability to offer functional planning security thanks to a standardised and certified system. The sliding door system was specially designed for use in entrance areas to operating rooms, quarantine rooms and intensive care areas in health care, laboratories in research institutions, and in the pharmaceutical industry.

Sliding door solutions from GEZE, product video

ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.

Technical data

	GEZE MCRdrive
For 1-leaf door systems	Yes
Leaf weight (max.) 1-leaf	200 kg
Opening width 1-leaf	800 mm - 2500 mm
Clear passage height	2400 mm
Service temperature	-15 - 50 °C
IP rating	IP20
Standard conformity	EN 16005, DIN EN ISO 13849: Performance Level D, DIN EN 12207:2016

Downloads

Flyer/folder

GEZE MCRdrive (.pdf | 2 MB)

Inspection certificate

MCRdrive (.pdf | 324 KB)

MCRdrive (.pdf | 321 KB)

MCRdrive (.pdf | 297 KB)

TÜV type approval certificate DCU 1 DCU 2 DCU 8 - Annex 1 sensor list (2023) (.pdf | 974 KB)

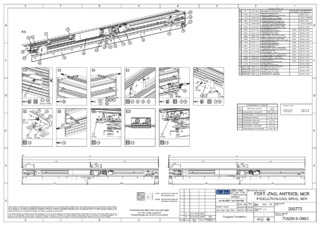

Installation drawing

GEZE MCRdrive - installation drawing (.zip | 2 MB)

Installation instructions

GEZE MCRdrive (.pdf | 5 MB)

MCRdrive (.pdf | 757 KB)

Installation instructions DE EN (1942884)

Product brochure

Product overview (.pdf | 10 MB)

Product data sheet

GEZE MCRdrive * Product data sheet EN (.pdf | 124 KB)
