IQ lock AUT * System solution for full panic doors with automated door leaves on both sides
- Motor-driven unlocking of door on active and passive leaf in less than three seconds
- Mechanical self-locking brings the bolt into its locked position on the active and passive leaf
- Unlocking of active leaf by activating passive leaf (full panic function)
- Divided cross latch prevents the bolt from locking even under side-load
- Electric sequential control on the active leaf ensures that the door will be locked safely
- Different modes of operation available for every situation
- Integrated feedback contacts on active and passive leaf enable complete door monitoring
- Choice of sabotage monitoring or cylinder contact on active leaf
- Locking in accordance with insurance requirements ensured
Application Areas
- Double leaf emergency exit and panic doors (left hand and right hand door)
- Doors along escape and rescue routes
- Fire and smoke protection doors (with MST 210 motor lock control, IO 420 extension module and on-site emergency power supply)
- Smoke and heat extraction system fresh air doors
- Access control systems
- Can be combined with GEZE automatic swing door systems
Installation situations in reference objects and videos

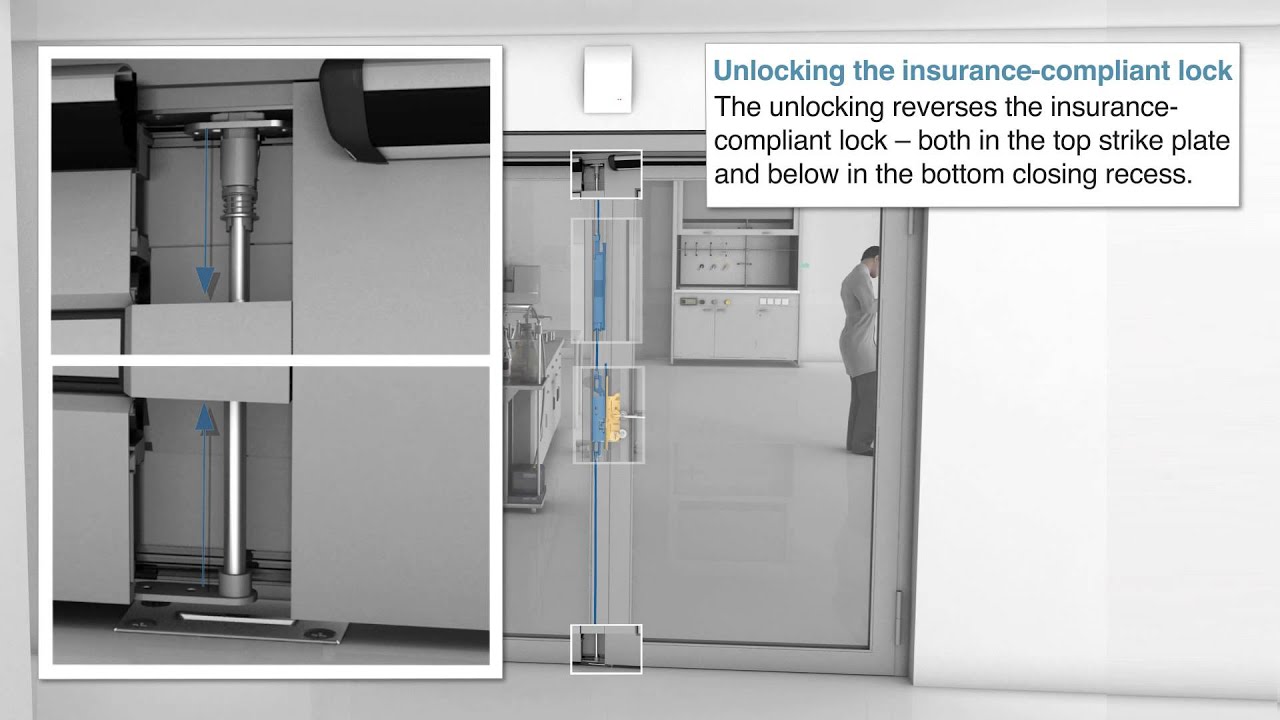

GEZE panic lock IQ lock AUT product video
Lock technology – the passive leaf has been motorised in double leaf doors, offering accessibility for everyone.
Technical data
| IQ lock AUT | |
| DIN direction | left / right |
| Service temperature | -10 - 50 °C |
| Panic function / mechanical self-locking | Yes |
| Feedback contacts for lock states | Yes |
| Activation | External contact |
| Current consumption | 60 mA at 24 V; max. 1.5 A at 24 V, N/A |
| Connector cable length | 10 m |
