Intelligent room partitioning with style
New or different designs for living spaces, more efficient use of office space or flexible use of glass fronts? No problem with modern room partitioning systems. Rooms can be individually divided and reconnected by using fixed or sliding wall systems and wood, plastic, metal and glass sliding doors. GEZE has design-oriented door fitting solutions for all these elements of functional architecture.
Visually enlarge rooms – with sliding glass doors
Sliding doors made of glass provide natural light in rooms. © Pau Esculies / GEZE GmbH
Nice try, but mostly impractical: adapt rooms to different uses using shelves, screens or folding partitions, or create privacy or noise protection with partition curtains or walls. The effect is usually rather cramped and dark. The solution favoured by interior designers and architects is: to quickly connect or separate rooms with comfortable sliding doors or sliding walls. Here, the use of glass enables flowing views and transparency.
Not only does light make every room appear wider and larger, natural daylight also makes a major contribution to the physical and mental well-being of users and residents. Modern glass technology also allows entire wall surfaces to be replaced with glass. The result is elegant new offices, meeting rooms, waiting rooms or residential rooms - with no costly construction. Functional door fittings create mobility and flexibility, with the individual elements moved in profiles or tracks.
GEZE partitioning: separate and connect with design
Manual sliding walls (MSW) open, divide and separate rooms and flexibly adapt them to their particular use. The modular design of the MSW allows the use of different system elements with varying functionalities. Fixed leaf elements can be used as double-action, swing and single-action doors or as fixed panels. Horizontally movable leaf elements, on the other hand, are used as sliding doors.
This means that a closed sliding door can be quickly transformed into a fully functional swing door with the help of an easy-to-operate locking mechanism. It is the perfect solution if the MSW glass front, for example in shops or cafés, is not to be opened completely when the weather is cold. GEZE offers attractive design options with the various cover profiles, which run inclined towards the glass or have a modern angled design.
GEZE manual sliding wall systems in the Ronald McDonald House
Manual sliding wall system from GEZE © Lothar Wels / GEZE GmbH
Young patients can have their family stay with them before and after their treatment at the university hospital, thanks to the latest Ronald McDonald house in Tübingen. The house’s open architecture not only creates an inviting and bright atmosphere. The continuous run of space on the ground floor also permits flexible use, for events for example.
It is opened up, partitioned and separated with manual sliding wall systems (MSW) from GEZE. Its modular structure allows system elements with different functions to be used. MSW is thus the ideal solution for transparent floor planning.
Manual sliding wall systems combine design and function
GEZE curve technology and guided roller carriages guarantee outstanding running characteristics and low-noise operation, even with large leaves. The glass elements can be moved easily and comfortably. © Nikolaus Grünwald / GEZE GmbH
Manual sliding wall systems separate offices quickly
Various surfaces and colours are available for perfect harmony with the building architecture. © Morten Bak / GEZE GmbH
Manual sliding wall system solution with sliding swing door
Numerous application possibilities: in shopping centres and shop entrances, railway stations, airports, hotels and restaurants or as night-time separation for banks and conference rooms. © Martin Jakob / GEZE GmbH
The SmartGuide opens up new possibilities in system design because as all leaves can simply be moved in the desired direction and arranged in the stacking area. © Exorbitart / GEZE GmbH
MSW leaf variants
Different designs of the GEZE MSW leaf variants, from the right: MSW Classicline, Pureline, Protectline, fine-framed, integrated all-glass systems and leaves on site.
The GEZE Pendulo System © Jochen Stüber / GEZE GmbH
GEZE Pendulo all-glass wall system
As a transparent partition in offices, in shop fitting or at home: many different elegant solutions become a reality with the Pendulo System. What’s special thing about it: the GEZE system conceals the intelligent technology – an integrated door closer – in the lower designer profile. This means that the door can be opened in both directions, it offers a balanced closing movement and it swings gently back to its rest position. Planning of the GEZE all-glass wall system is also straightforward: with the online-based Pendulo configuration tool, complete solutions from a single source can be designed quickly and easily – according to individual wishes.
GEZE Pendulo areas of application
- Partitions between offices and corridors
- Meeting rooms for various uses
- Waiting areas in medical practices
- Shop fronts in shopping centres
- Vestibule solutions in private and commercially used areas
Sliding door technology by GEZE: sleek technology – highly durable
GEZE offers various door fitting solutions for functional and visually appealing sliding door systems, partition walls or other movable elements. They consist of a track and the roller carriage guided in it, which moves the connected glass, wood or metal sliding door leaves. Their particular benefits include smooth running and sleek design. An extensive range of accessories offers diverse solutions.
The GEZE roller and designer fittings for manual sliding doors
|Sliding doors||Sliding shutters|
|Leaf weight |
|40 kg.||80 kg||60 kg||120 kg||140 kg||80 kg||140 kg||120 kg|
|Class 1||Class 3||Class 3||Class 2||-||Class 4||-|
● = especially suitable for
○ = also suitable for
- = no
The Rollan and Perlan roller sliding fittings are designed primarily for interior doors, while Perlan is also suitable as an exterior solution.
The quiet roller sliding system for simple sliding concepts
With the quiet roller sliding system GEZE Rollan, simple sliding leaves can easily be installed in interiors.
Benefits of the Rollan Series
- ceiling and wall mounting allows the system to be used in many different ways, e.g. in passage doors, room dividers and cloakrooms
- virtually noiseless running performance due to the track with flat bearing surface, thus particularly suitable for doors in residential and office areas
- the C-shape of the track reduces dust and dirt penetration
- lower planning and storage costs, as the track can be used for Rollan 40 NT and Rollan 80 NT as well as for any leaf material
- easy adaptation to changing usage conditions
- The distance between the door leaf and the track can be adjusted or readjusted easily after installation using the suspension bolt.
Optionally with SoftStop draw-in damper
The optional Rollan 80 NT SoftStop draw-in damper offers comfort and safety even for sliding doors with narrow leaf widths. The door is braked gently and returns to the end position on its own. The gentle retraction into the end position is easy on the door and the door fittings, thus increasing the life span of the door. Up to a door leaf weight of 40 kg, the damping can be used at the end of the track on one or both sides. The Rollan 80 NT SoftStop with a total height of only 25 mm is completely concealed in the track.
Rollan 40 NT: Installation in a bedroom
Elegant and quiet – GEZE Rollan 40 is perfect for this environment. © GEZE GmbH
Rollan 80 NT: installation situation office
Rollan 80 NT is also suitable for office doors due to its smooth and light running.
The sleek universal fitting for all types of door leaves
The compact GEZE Levolan sliding door system is the sleek solution for creating functional and effortlessly moving manual sliding doors for internal application.
Benefits of the Levolan Series
- design-oriented sliding fitting system with slim optics only 50 x 50 mm outer dimensions
- quick and uncomplicated installation from the front and with just one installation tool thanks to the Levolan Smart fix installation system
- installation of the draw-in damping without leaf processing
- increased safety through automatic activation of the integrated derailing protection when the door leaf is adjusted in height
- modular door fitting system allows quick and uncomplicated solutions for every installation situation
- only one track needed for wall and ceiling mounting
- prefabricated door fitting sets reduce individual parts storage and thus save costs
- Configured sliding door systems can be planned in SAP using the Levolan 60/120 configuration tool and sent with drawings.
Optionally with SoftStop draw-in damper
With the GEZE Levolan 60 SoftStop, the version with draw-in damper on one or both sides, sliding panels up to 60 kg can be realised without additional leaf processing. Draw-in damper on both sides is available for even slim door leaf widths from 770 mm. Door movement is gently slowed approx. 10 cm before the end of the slide guide. The door leaves are then guided automatically and almost silently into the end position. There is no slamming into the frame or door stop , and there is virtually no risk of pinching. The Levolan 60 SoftStop can be retro-fitted and adapts the sliding door to changing user needs.
Levolan 60: installation in an office
GEZE Levolan 60: with its linear design, it adapts to almost any installation situation. Plus X award-winning door fitting technology for glass and wooden leaves up to 60 kg. © GEZE GmbH
Levolan 60: installation in a residential home
GEZE Levolan 60: the sleek solution also fits into elegant living spaces.
Levolan 120: installation in an office
The GEZE Levolan 120 has the same appearance as the well-proven Levolan 60, but with twice the load-bearing capacity. The award-winning door fitting technology for glass and wooden leaves is ideal for offices. © GEZE GmbH
Levolan 120: installation in a residential home
As the ‘big brother’ of the Levolan 60, the Levolan 120 moves manual sliding doors for internal applications with door leaves weighing up to 120 kg. It enables light-flooded, modern room partitioning, including in residential applications. © GEZE GmbH
Levolan 60 is suitable for glass elements and wooden leaves up to 60 kg. © GEZE GmbH
Levolan 120 is suitable for glass elements and wooden leaves up to 120 kg. © GEZE GmbH
The all-rounder among door fittings for manual sliding doors
GEZE Perlan 140 is a roller sliding system for single and multi-leaf as well as synchronous sliding door systems. The discreet sliding system fits into any room design and, with its extensive range of accessories, enables a multitude of elegant and individual solutions for permanent use in heavily frequented living and working areas.
Benefits of the Perlan series
- the door fitting technology is integrated in the 40 mm high track, and can be used for leaf weights of up to 140 kg
- runs exceptionally smoothly due to two internal, sealed precision ball bearings in each roller carriage, the track design and the generously dimensioned carrier rollers
- corrosion protection for slightly damp interiors thanks to internal sealed ball bearings
- reduced abrasion plus increased corrosion protection due to track in anodised light metal alloy
- adjustability of the door to individual situations, e.g. in case of inaccuracies in the brickwork, through selectable distance of the leaf to the wall via the wall bracket
- The optional AUT-NT automation set is a practical and economical low-energy drive solution for interior sliding doors with a leaf weight of up to 80 kg and provides opening and closing comfort in offices or private homes.
Optionally with SoftStop draw-in damper
With the GEZE Perlan 140 SoftStop draw-in damper, the door is gently braked and automatically retracts to the end position. The gentle retraction into the end position is easy on the door and the door fittings, thus increasing the life span of the door. The Perlan 140 SoftStop is completely concealed in the track and has a total height of only 40 mm. This eliminates the need for additional covering and disruptive attachments. It is available for leaf widths between 515 and 1700 mm and leaf weights of up to 80 kg. This set is particularly suitable for office and residential applications.
Perlan 140: installation in an office
The door fitting technology is integrated in the 40 mm high track and can be used for leaf weights up to 140 kg. The elegant profile makes it ideal for visible use, e.g. in offices. © Dirk Wilhelmy / GEZE GmbH
Perlan 140: installation in a residential home
The discreet sliding system blends into any room design and, with its extensive range of accessories, enables a multitude of elegant and individual solutions. © Studio BE / GEZE GmbH
Perlan Duosync: installation in an office
The Perlan 140 Duosync roller sliding fitting opens and closes double-leaf sliding doors in sync. It can be used to comfortably open and close both leaves with only one handle. © GEZE GmbH
Perlan 140 ensures smooth running with two precision ball bearings per roller carriage and the generously dimensioned carrier rollers. The distance between the leaf and the wall can be adjusted individually. © GEZE GmbH
Plenty of scope for design in planning
GEZE offers a wide variety of solutions for functional, heavy-duty and aesthetic room partitions with sliding doors, sliding wall systems and all-glass wall systems with plenty of scope for design during planning.
Planners can configure the manual sliding wall system (MSW) as well as the all-glass wall system Pendulo and Levolan 60/120 online using configuration tools.
GEZE also offers training on the systems in the form of webinars, either at a GEZE subsidiary or at the customer's premises. The customer receives complete project-related technical documentation for each proposal prepared. Special solutions are available to planners on request.
Quick and easy installation
GEZE solutions also have many advantages for installation companies: MSW and Pendulo do not need glass processing for door rails and fixed panel profiles. Both systems can be easily and quickly installed at the construction site.
With MSW, an LSG adhesion bracket enables the use of laminated safety glass without additional profile or glass processing.
Quick and uncomplicated installation from the front and with just one installation tool thanks to the Levolan Smart fix installation system.
Convenient operation of manual sliding wall systems
The excellent running characteristics and low-noise operation thanks to guided curve technology require only little force to move the glass elements manually. The complete opening of e.g. shop fronts by MSW SmartGuide roller carriages makes the system extremely flexible.
The Perlan sliding door fitting system is particularly robust, especially in highly frequented residential and office areas:
- permanently smooth running due to two internal precision ball bearings in each roller carriage, the track design and the generously dimensioned carrier rollers
- Corrosion protection for slightly damp interiors and thus longevity due to internal, sealed ball bearings. The anodised alloy track reduces abrasion and also guarantees increased corrosion protection.
- The gentle retraction into the end position thanks to GEZE Perlan 140 SoftStop protects the door and door fittings and increases the life span.
Levolan 120 installation of door fittings
The installation of door fittings for the GEZE Levolan 120 for manual sliding doors in an interior application with a leaf weight of up to 120 kg. Installation (with GEZE Levolan 120 SoftStop draw-in damping) is quick and easy with the Levolan Smart fix installation system.

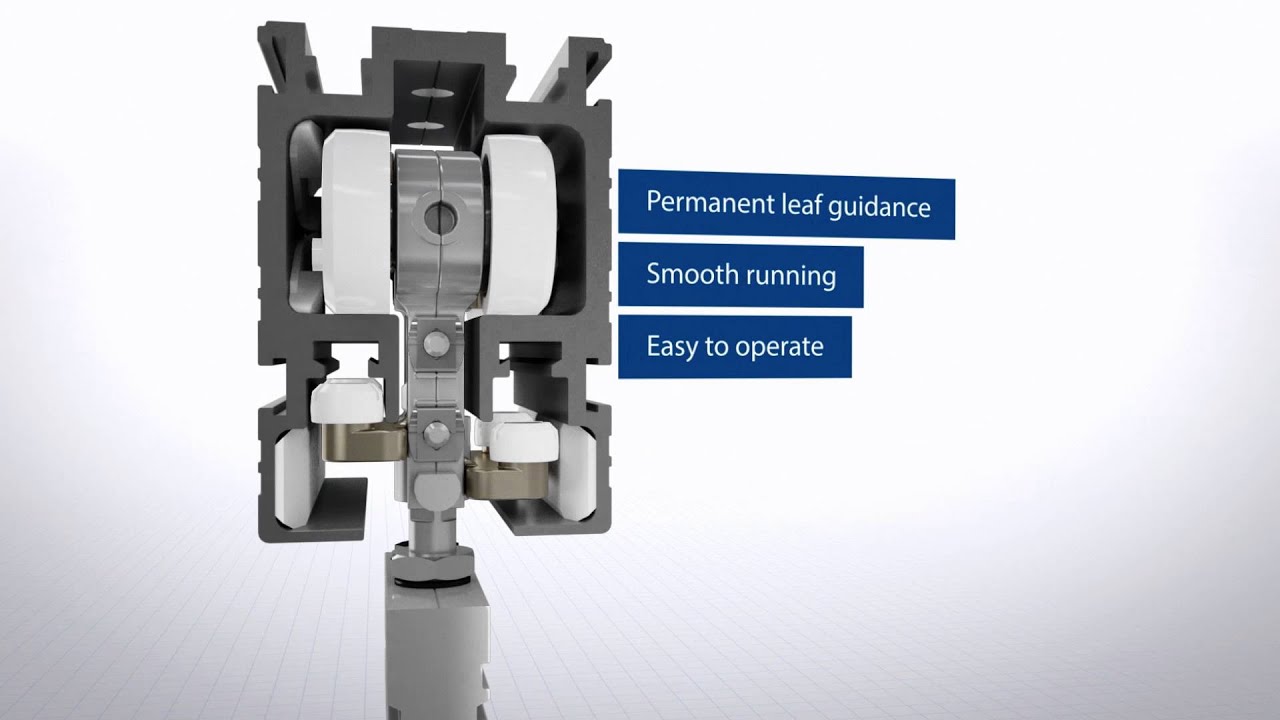

Product video: GEZE MSW SmartGuide
Watch the video to learn more about the GEZE MSW SmartGuide technology for manual sliding wall systems.

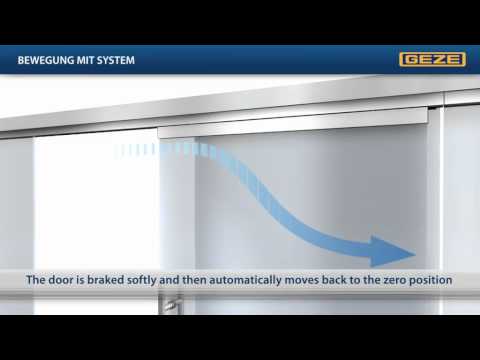

Product video: GEZE Perlan 140 with SoftStop
Watch the video to learn more about the GEZE MSW SmartGuide technology for manual sliding wall systems. The draw-in damping enables the sliding door leaves to be retracted gently and fully into the end position - completely noiselessly.
