Guide rail 1-leaf

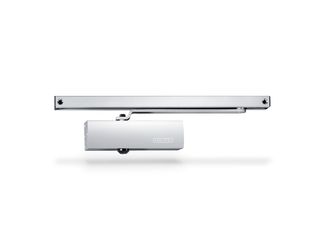

TS 1500 G * Overhead door closer with guide rail with a leaf width of up to 750 mm
- Fixed closing force of EN1
- Can be used for right and left hand doors without conversion
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- All functions can be set from the front (except for closing force)
Application Areas
- Right and left single-action doors
- Single-action doors up to 750 mm leaf width
- Door leaf installation hinge side and transom installation opposite hinge side
Technical data
| TS 1500 G | |
| Leaf width (max.) | 750 mm |
| Type of installation | Door leaf installation hinge side, Transom installation opposite hinge side |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Position of closing force adjustment | At the side |
| Hold-open function | Optional |
Downloads

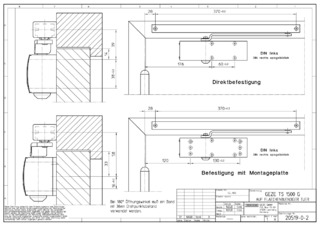

TS 1500 G overhead door closer with guide rail
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
