Slimdrive EMD * Electromechanical swing door drive with only 7 cm height for single leaf doors up to 180 kg
- Opening and closing speed can be individually adjusted
- Electrical latching action which accelerates the door shortly before the closed position
- Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
- Obstacle detection detects an object through contact and stops the opening or closing process
- Automatic reversing detects an obstacle and returns to the opening position
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf
- Drive can be used with roller guide rail or link arm
- Freely configurable inputs and outputs for different functions
- Can be networked, and integrated into the building automation via open standard (BACnet)
Quiet, electromechanical drive system with a construction height of just 7 cm for 1-leaf swing doors.
Application Areas
- Single-action, single leaf, right and left closing doors
- Single-action doors up to 1400 mm leaf width and 180 kg weight
- Entrance and interior doors with moderate access frequency

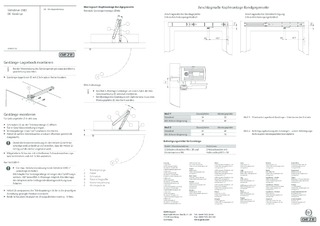

- Door leaf installation and transom installation
Installation situations in reference objects and videos
Slimdrive EMD with GC 342 laser scanner and TZ 320 door control unit
The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience. © Jürgen Pollak / GEZE GmbH
Automatic sliding door drive Slimdrive SL and automatic swing door drive Slimdrive EMD with guide rail and panic bar, installed at the Financial Academy Bonn
Very smooth low-wear automatic linear sliding door system with low height and clear design line for optimum ease of access. © Lothar Wels / GEZE GmbH
Swing door drive - Slimdrive SL/ EMD + guide rail + bar, Financial Academy Bonn
Emergency exit protection systems save lives and protect buildings. Safety demands are high. System solutions from GEZE ensure optimum locking, control and opening of emergency exits. © Lothar Wels / GEZE GmbH
Technical data
| Slimdrive EMD | |
| Leaf weight (max.) 1-leaf | 180 kg |
| Leaf width (min.-max.) | 750 mm - 1400 mm |
| Reveal depth (max.) | 400 mm |
| Door overlap (max.) | 50 mm |
| Drive type | Electromechanical |
| Opening angle (max.) | 130 ° |
| DIN left | Yes |
| DIN right | Yes |
| Transom installation opposite hinge side with link arm | Yes |
| Transom installation opposite hinge side with roller guide rail | Yes |
| Transom installation hinge side with roller guide rail | Yes |
| Door leaf installation opposite hinge side with roller guide rail | No |
| Door leaf installation hinge side with roller guide rail | Yes |
| Door leaf installation hinge side with link arm | No |
| Mechanical latching action | No |
| Electrical latching action | Yes |
| Disconnection from mains | Main switch in the drive |
| Activation delay (max.) | 20 s |
| Operating voltage | 230 V |
| Power rating | 230 W |
| Power supply for external consumers (24 V DC) | 1000 mA |
| Service temperature | -15 - 50 °C |
| Air humidity non-condensing (max.) | 95 % |
| IP rating | IP20 |
| Mode of operation | Automatic, Permanently open, Night, Off, Shop closing |
| Automatic function | Yes |
| Low-energy function | Yes |
| Servo function | No |
| Obstacle detection | Yes |
| Automatic reversing | Yes |
| Push & Go | adjustable |
| Operation | Programme switch integrated in the drive, Programme switch DPS, MPS programme switch |
| Parameter setting | Service terminal ST 220, Programme switch DPS, GEZEconnects (PC + Bluetooth) |
| Standard conformity | DIN 18650, EN 16005 |
