Powerturn

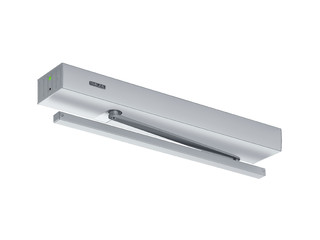

Powerturn * Electromechanical swing door drive for single leaf doors weighing up to 600 kg

Powerturn
  • Smart swing function for easy manual door opening
  • Closing force of EN4-7 with variable adjustment
  • Opening and closing speed can be individually adjusted
  • Mechanical latching action when operated without current, and electrical automatic unit latching action in regular operation, which accelerates the door shortly before it is closed
  • Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
  • Servo function for motorized support when manually opening the door
Show more
  • Obstacle detection detects an object through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf
  • Drive can be used with roller guide rail or link arm
  • Optional radio reception board for wireless activation by radio transmitter
  • Freely configurable inputs and outputs for different functions
  • Can be networked, and integrated into the building automation via open standard (BACnet)
Contact us

Application Areas

  • Single-action, single leaf, right and left closing doors
  • Single-action doors up to 1600 mm leaf width or 600 kg weight
  • Minimum door leaf width is 800 mm
  • Interior and exterior doors with high access frequency
  • Door leaf installation and transom installation
Go to the Powerturn door computer

Technical data

Powerturn
Leaf weight (max.) 1-leaf 600 kg
Leaf width (min.-max.) 800 mm - 1600 mm
Reveal depth (max.) 560 mm
Opening angle (max.) 136 °
DIN left Yes
DIN right Yes
Transom installation opposite hinge side with link arm Yes
Transom installation opposite hinge side with roller guide rail Yes
Transom installation hinge side with roller guide rail Yes
Door leaf installation opposite hinge side with roller guide rail Yes
Door leaf installation hinge side with roller guide rail Yes
Door leaf installation hinge side with link arm Yes
Mechanical latching action Yes
Electrical latching action Yes
Disconnection from mains Main switch in the drive
Power supply for external consumers (24 V DC) 1.2 A
Service temperature -15 - 50 °C
Air humidity non-condensing (max.) 95 %
Mode of operation Automatic, Off, Permanently open, Shop closing, Night
Automatic function Yes
Low-energy function Yes
function smart swing Yes
Servo function Yes
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch DPS, Programme switch integrated in the drive, MPS programme switch
Parameter setting Service terminal ST 220, Programme switch DPS, GEZEconnects (PC + Bluetooth)
Standard conformity EN 16005, DIN 18650
